2180cc Air-cooled Vw Bug Engine Rebuild Kit, 82mm Crank GTV-2 Heads & Mahle Pistons

SKU: AC198210-M

Free Shipping | Contiguous USA | No Purchase Minimums

WARNING: This product can expose you to certain chemicals, which are known to the State of California to cause cancer, birth defects or other reproductive harm.
For more information go to:

Moore Parts 2180cc Engine Kit. Compatible For Air-cooled Volkswagen Bug, Karmann Ghia & Vw Bus.

This Kit Requires Machine Work To Your 1600cc Engine Case, The Piston Barrel Sleeves Will Not Slip Right In. Must Machine For 90.5 / 92mm Barrel Sleeves. The Counter Weighted Crank Will Require Machine Clearance.

This Moore Parts Kit Supplies Most Parts Needed To Build A High Performance 2180cc Dual Port Engine!

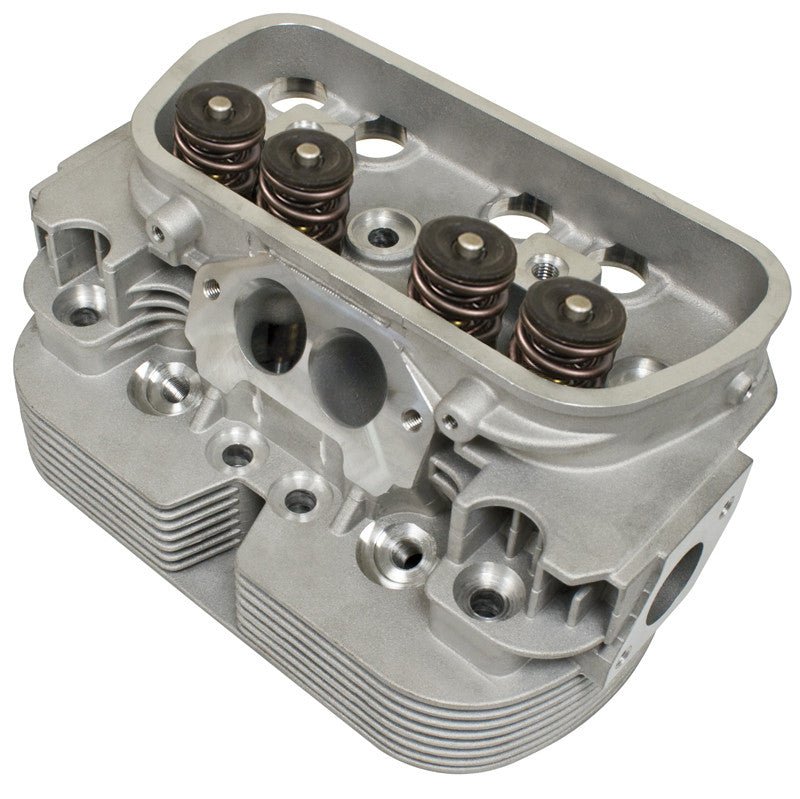

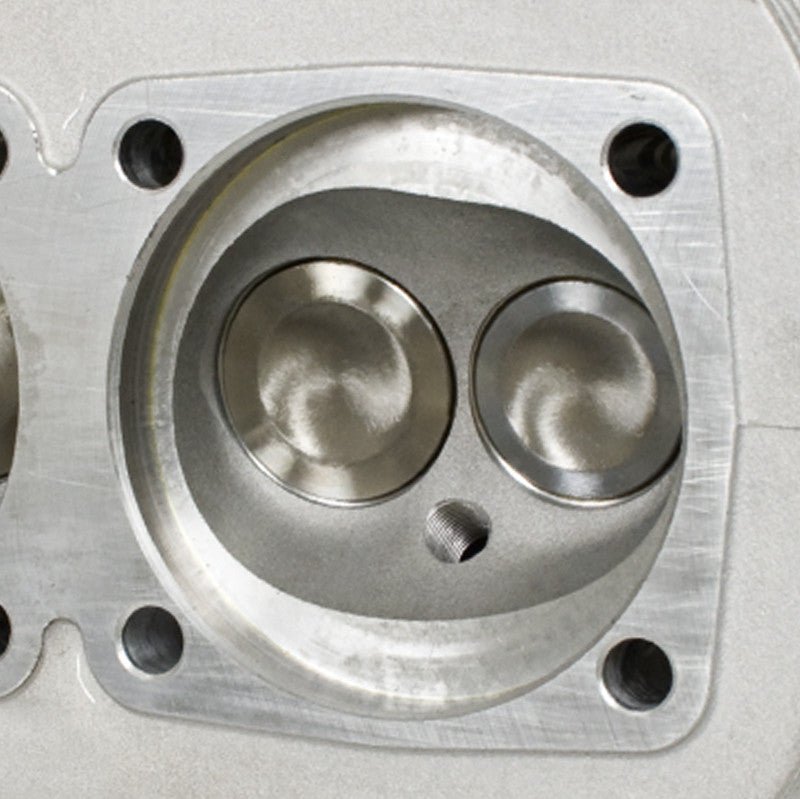

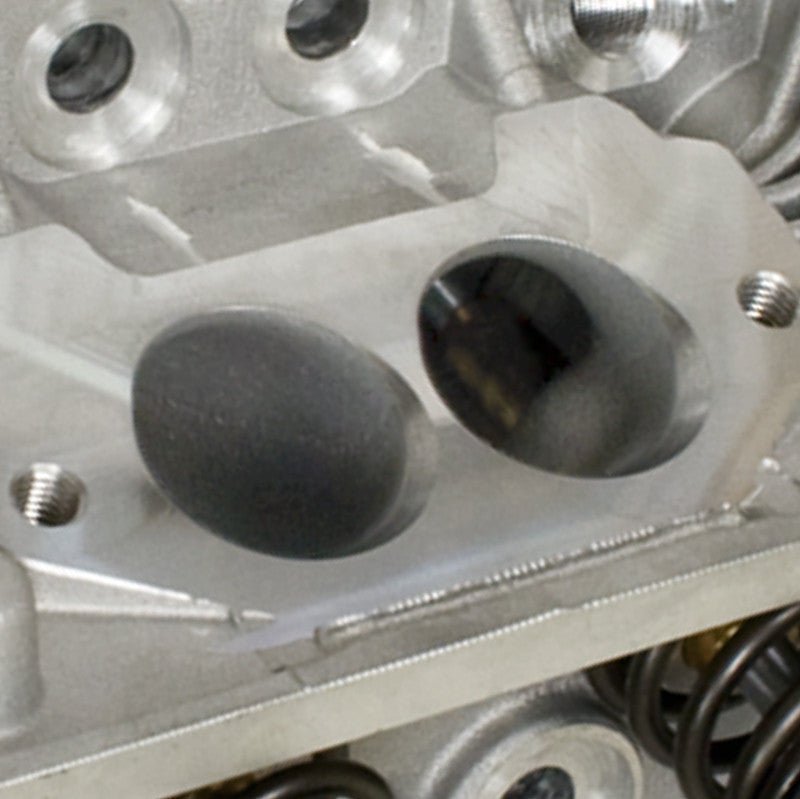

All Components In This Kit Are Top Quality And Brand New. ( NO RECONDITIONED PARTS! ) Forged MAHLE Pistons Include High Quality Rings & Thick Cast Iron Cylinders, Wrist Pins And Clips. Empi GTV-2 Cylinder Heads Come Complete With 40mm X 35mm Stainless Steel Valves, 58cc Combustion Chambers, 12mm 3/4" Reach Spark Plug Holes, Dual Hi-Rev Valve Springs, Chromoly Retainers, Hardened Keepers, Rocker, Exhaust And Intake Studs. Complete With A Performance Valve Job, They Are Ready To Run!
Bugpack 4340 Chromoly 82mm Stroker Crank With Vw Journals. Features Multiple Die Stamping Then Magna Fluxed, Shot Peened And All Journals Nitrided, Precision Ground And Micro Polished.
Bugpack Forged 4340 Chromoly H-Beam Rods 5.500" Length. Race Proven H-Beam Design Combines Weight And High Strength Due To The Forged 4340 Chromoly Construction. Radiused Rod Caps Help Reduce The Amount Of Clearancing Required On Stroker Applications And Are Sleeved To The Rod To Eliminate Cap Shifting.
We Also Include The Elring German Engine Gasket Kit, Standard Rod Bearings, Double Thrust Cam Bearings, Stock Push Rod Tubes And NGK D8EA Spark Plugs.

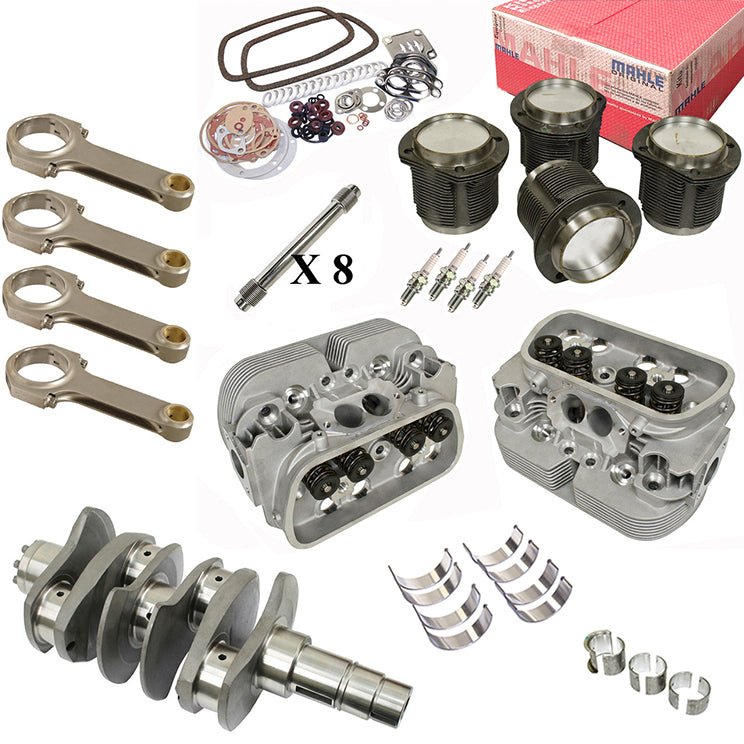

Moore Parts Kit Includes:

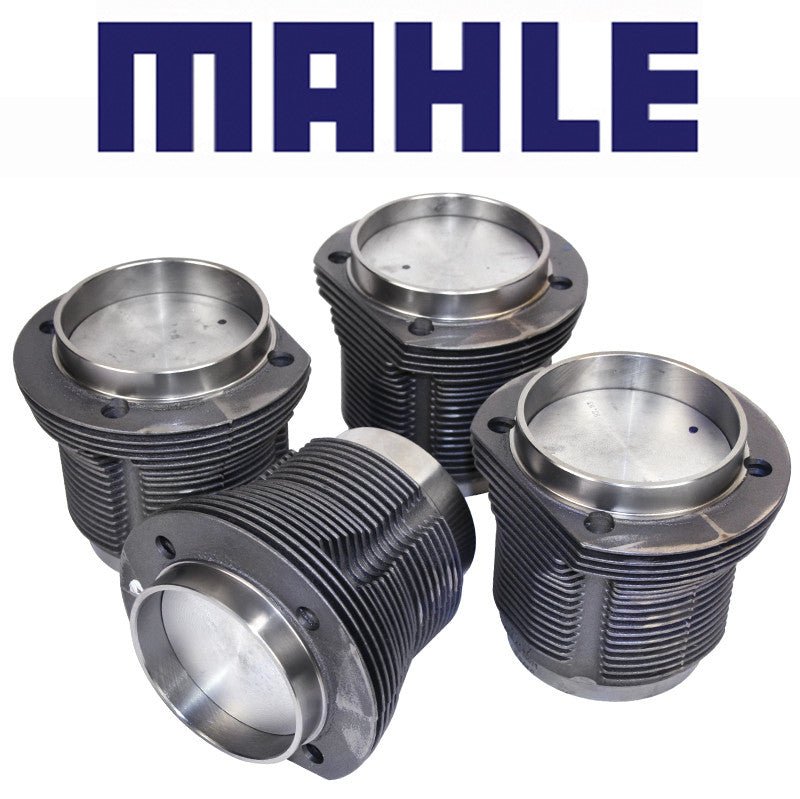

92mm Mahle Forged Stroker Pistons & Cylinders (Set Of 4)
Empi 98-1334-B GTV-2 Dual Port Complete Cylinder Heads (Qty 2)
Bugpack 8182 Chromoly Stroker Crank (Qty 1)
Bugpack 8311 Chromoly H-Beam Rods 5.500" Length (Set Of 4)

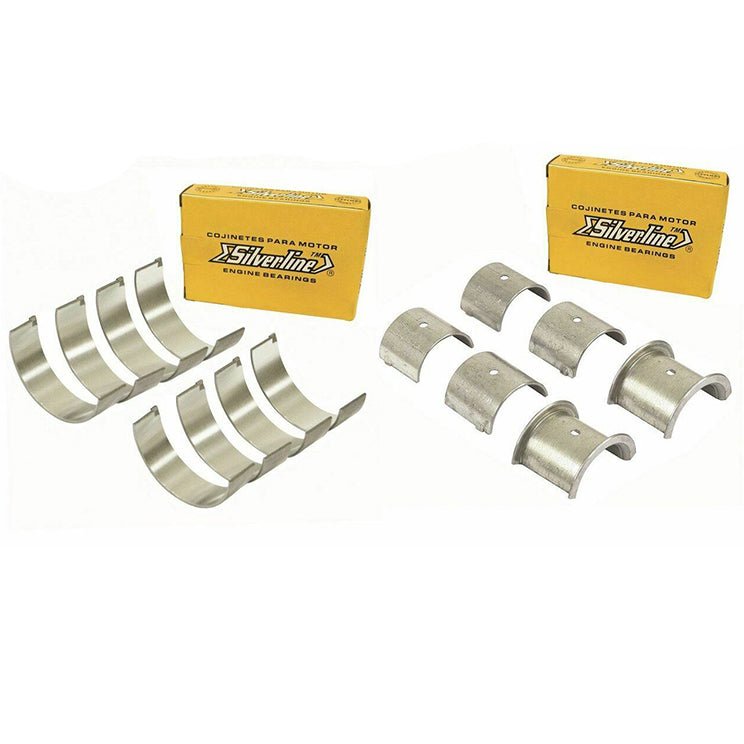

Standard Rod Bearings (Qty 1)
Double Thrust Cam Bearings (Qty 1)
Elring German Engine Gasket Kit (Qty 1)
Stock 1600cc Steel Push Rod Tubes (Qty 8)

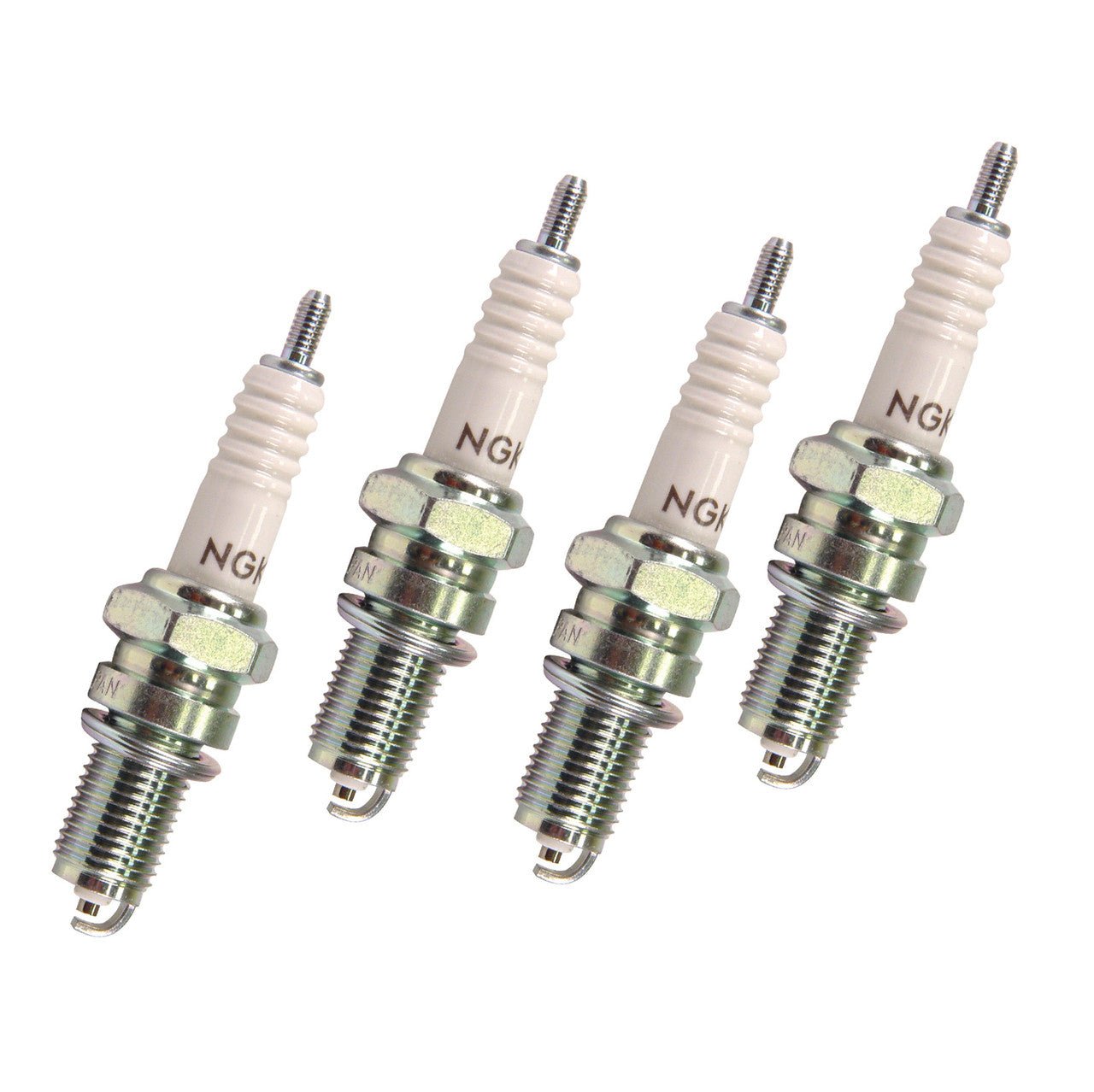

NGK D8EA Spark Plugs (Qty 4)
Empi Lash Caps 4006

This Kit Is Ideal For Anyone On A Budget That Wants A High Quality Performance Engine For Their Daily Driver Baja Bug, Vw Beetle, Manx, Sandrail Or Dune Buggy.
Order Your Kit Today And Make Rebuilding Your Vw Fun And Affordable.
