Blue Sea Grey Battery Cut-Off Switch Single Battery Operation K4-16-135

SKU: K4-16-135

Free Shipping | Contiguous USA | No Purchase Minimums

WARNING: This product can expose you to certain chemicals, which are known to the State of California to cause cancer, birth defects or other reproductive harm.
For more information go to:

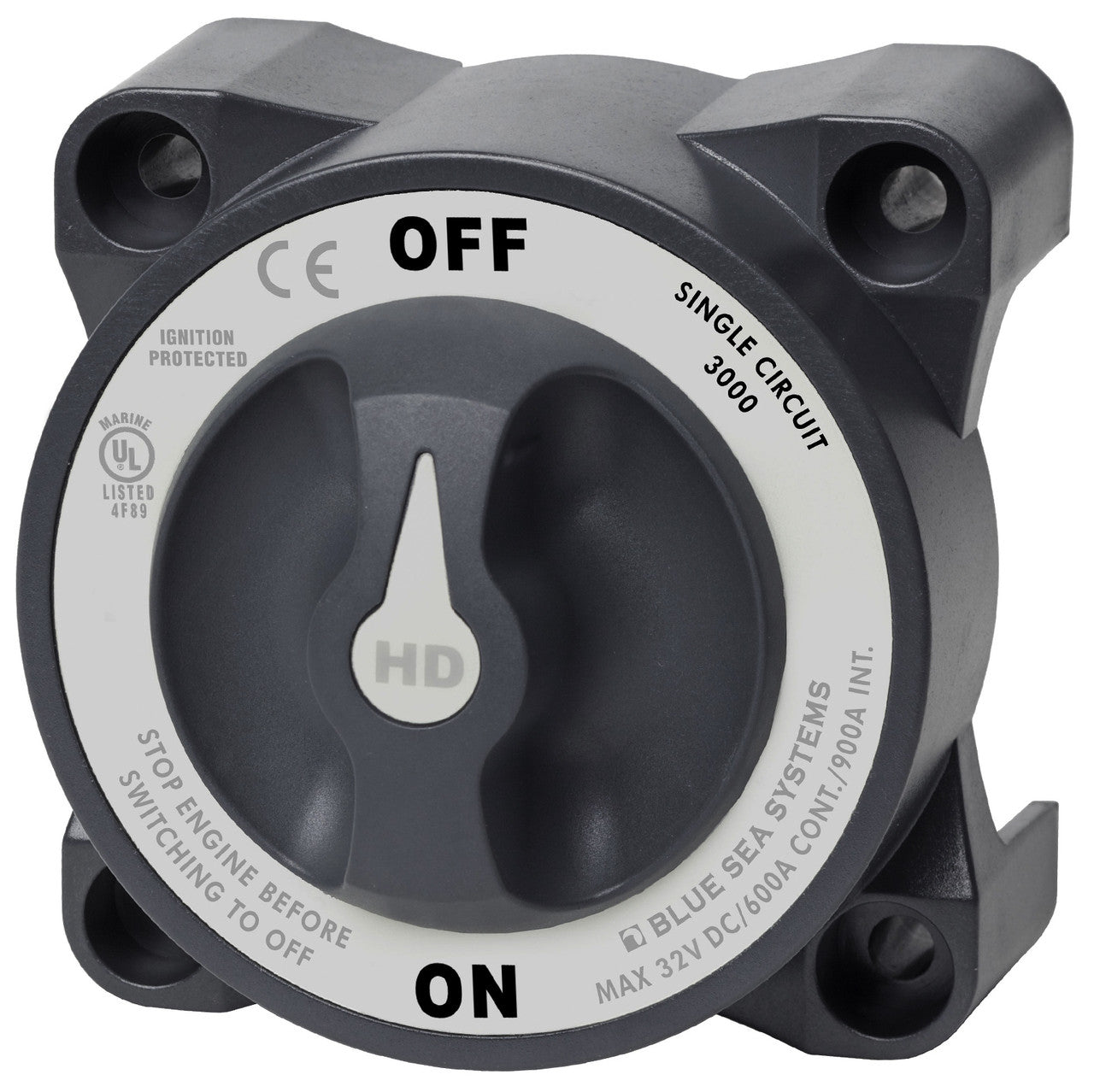

Blue Sea HD-Series Heavy Duty Grey On-Off Battery Switch With Knob, Single Battery Operation.

Switches A Single Battery To A Single Load Group
Ignition Protected—Safe For Installation Aboard Gasoline Powered Boats
Case Design Allows Surface Or Rear Panel Mounting
Accepts Two 4/0 AWG (95mm²) Battery Cables

Switch Type - Single Circuit ON-OFF
Color - Grey
Switch Positions - 2
Battery Combine - NO
Alternator Field Disconnect - NO
Maximum Voltage - 32V DC
Continuous Rating - 600 Amps
Intermittent Rating - 900 Amps 5 Minutes
Cranking Rating 30 Sec - 1750Amps
Battery Inputs - 1
Cable Quantity to Meet Ratings - Two Cables
Cable Size To Meet Ratings - 4/0Awg
Mounting Holes - Accept 1/4" (M6) Screw
Terminal Stud Size - 1/2" Ring Terminals
Weight - 1.30lb (0.59 kg)

Sold As Each

16-135 K-Four Switches
