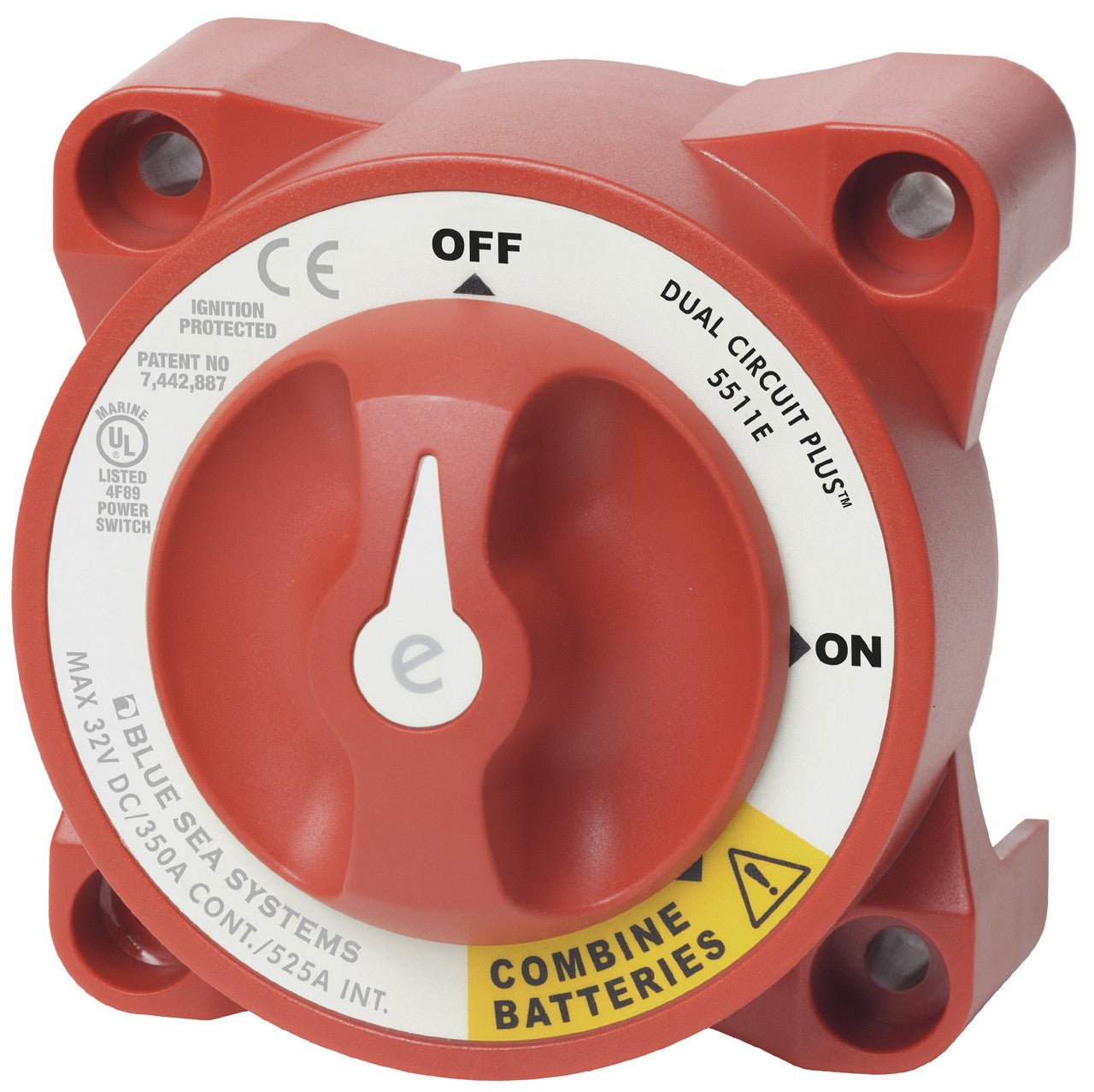

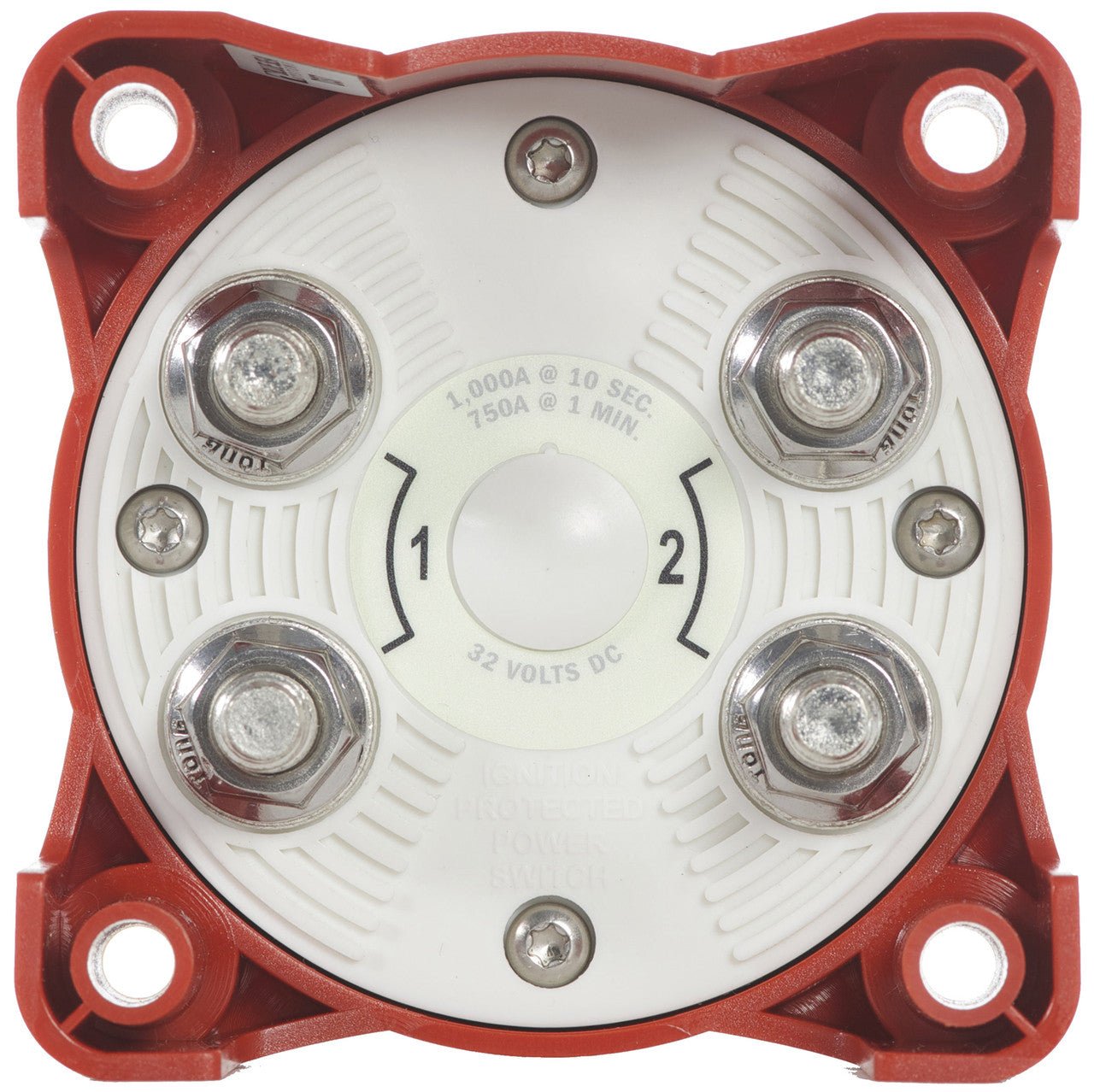

Blue Sea E-Series Red Dual Circuit Plus Battery Switch With Knob, Dual Battery Operation.
Features:
Simultaneously Switches Two Isolated Battery Banks Or Combines Battery Banks To All Loads
Ignition Protected—Safe For Installation Aboard Gasoline Powered Boats
Case Design Allows Surface Or Rear Panel Mounting
Specs:
Switch Type - Dual Circuit Plus
Color - Red
Switch Positions - 3
Battery Combine - Yes
Alternator Field Disconnect - NO
Maximum Voltage - 32V DC
Continuous Rating - 350 Amps
Intermittent Rating - 525 Amps 5 Minutes
Cranking Rating 30 Sec - 700Amps Per Circuit
Battery Inputs - 2
Cable Size To Meet Ratings - 4/0Awg
Mounting Holes - Accept 1/4" (M6) Screw
Terminal Stud Size - 3/8" Ring Terminals
Weight - 1.30lb (0.59 kg)
Sold As Each
