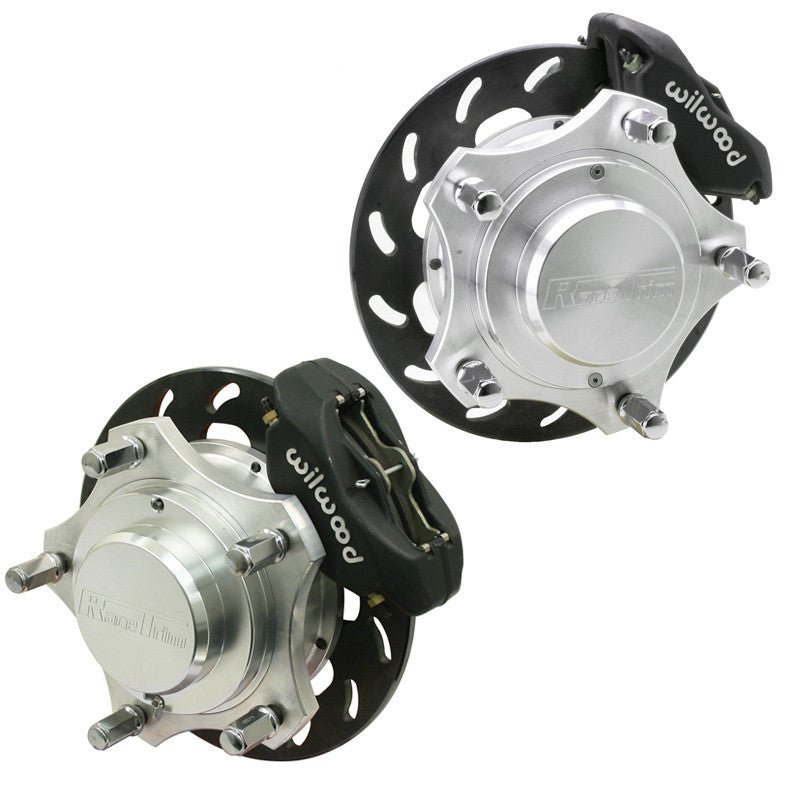

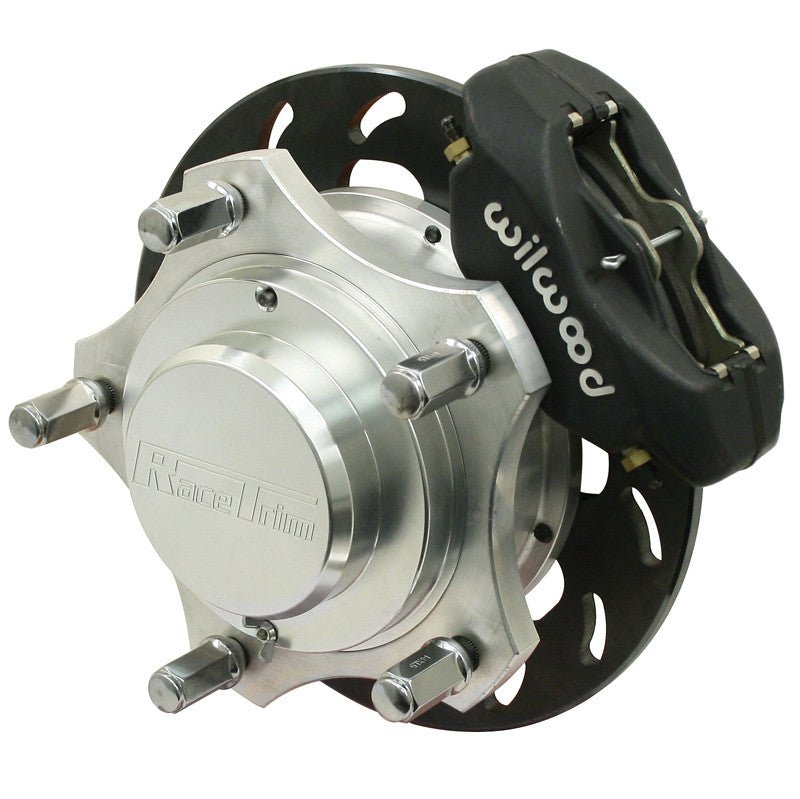

Empi 16-2510-0 Race Trim 930 Micro Stub Rear Disc Brake Kit. 5 Lug X 205mm Bolt Pattern With 14mm X 1.5 Studs And Chrome Lug Nuts.
Complete Kit Includes:

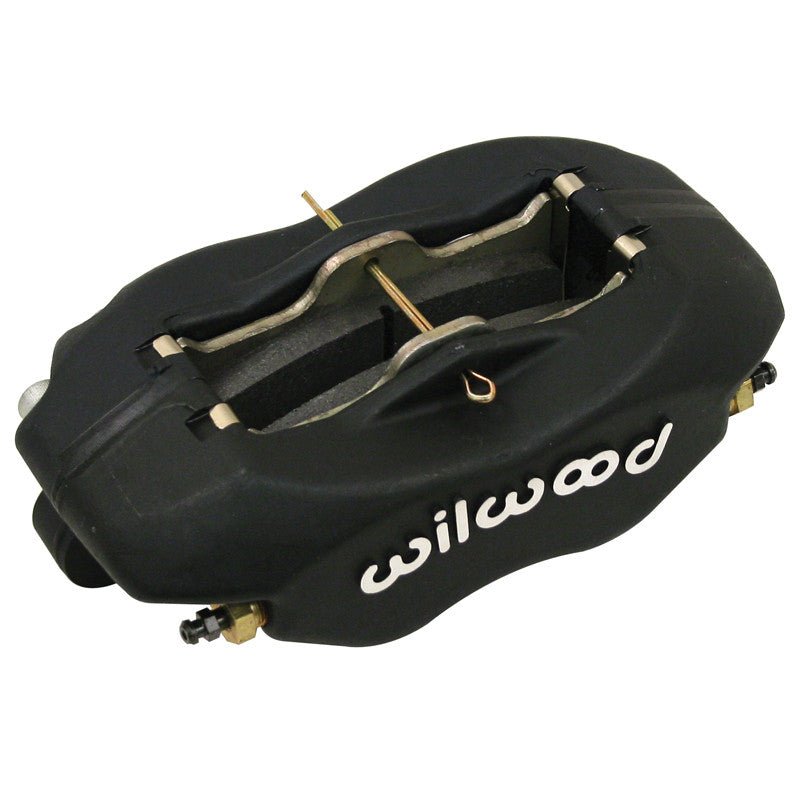

(2) 4 Piston Wilwood Forged Calipers With Poly Matrix Pads.

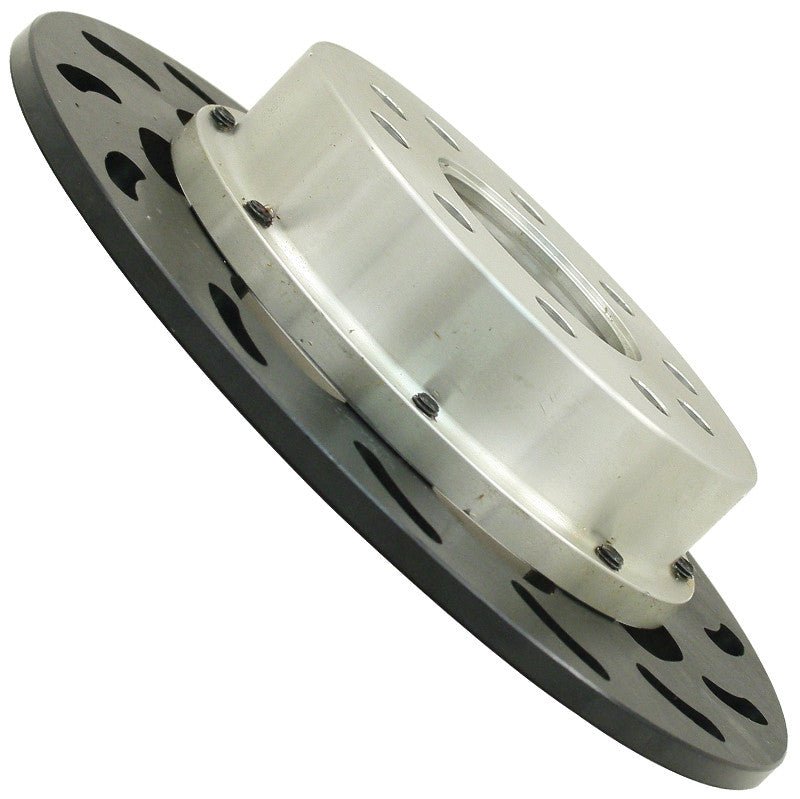

(2) 11-1/4" Vented Brake Rotors, Blanchard Ground To .360" Thick & Black Oxided.

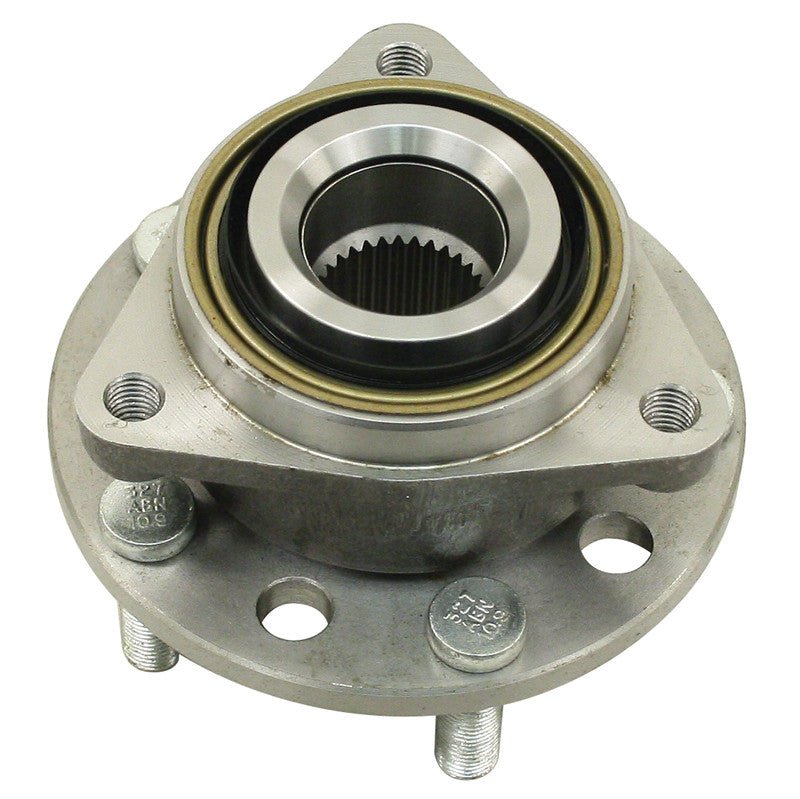

(2) Heavy Duty Forged Bearing Hub Assemblies 3.60" Diameter, 33 Spline Measuring At 1.490" Diameter.

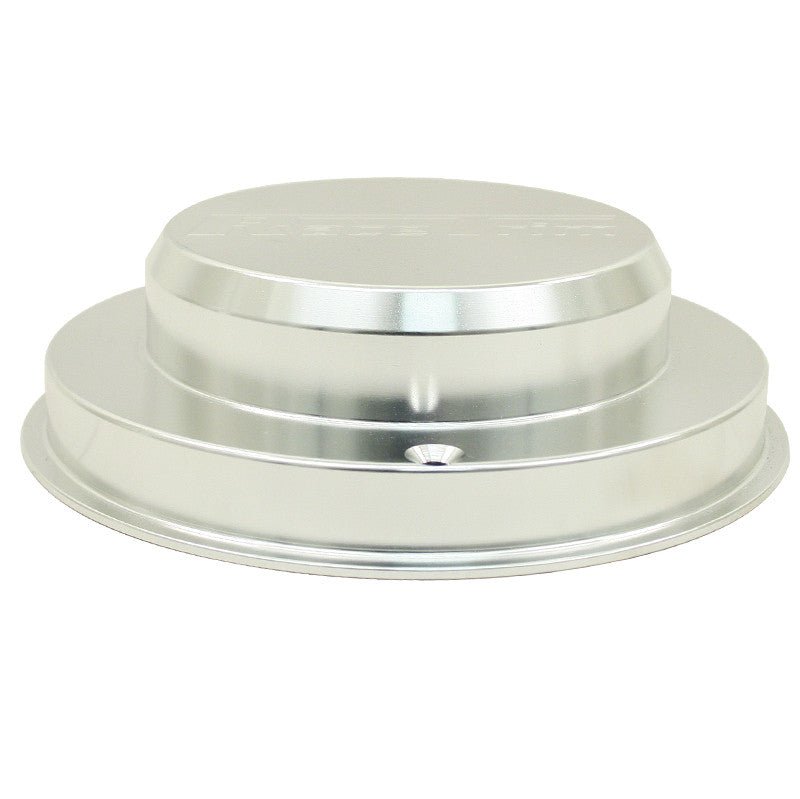

(2) 6061 T-6 Satin Finish Aluminum Alloy Rotor Hats, Attaches To The Center Of The Wheel Adapter By Two 10-24 Stainless Steel Counter Sunk Allen Screws.

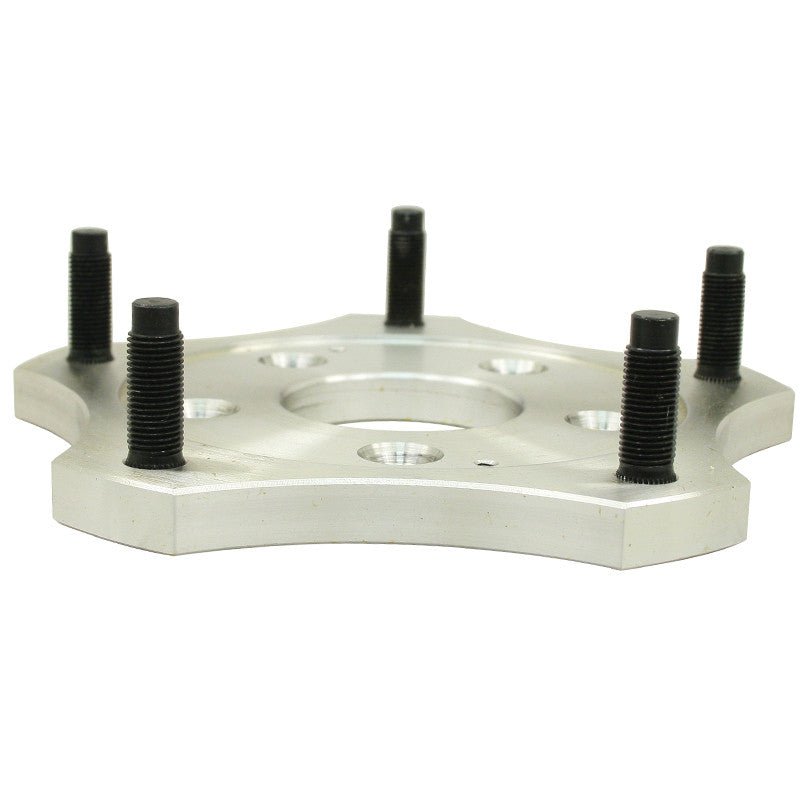

(2) 6061 T-6 Aluminum Wheel Adapters, .650" Thick With 5/205 Vw Lug Bolt Patter. 14mm X 1.5 Wheel Studs.

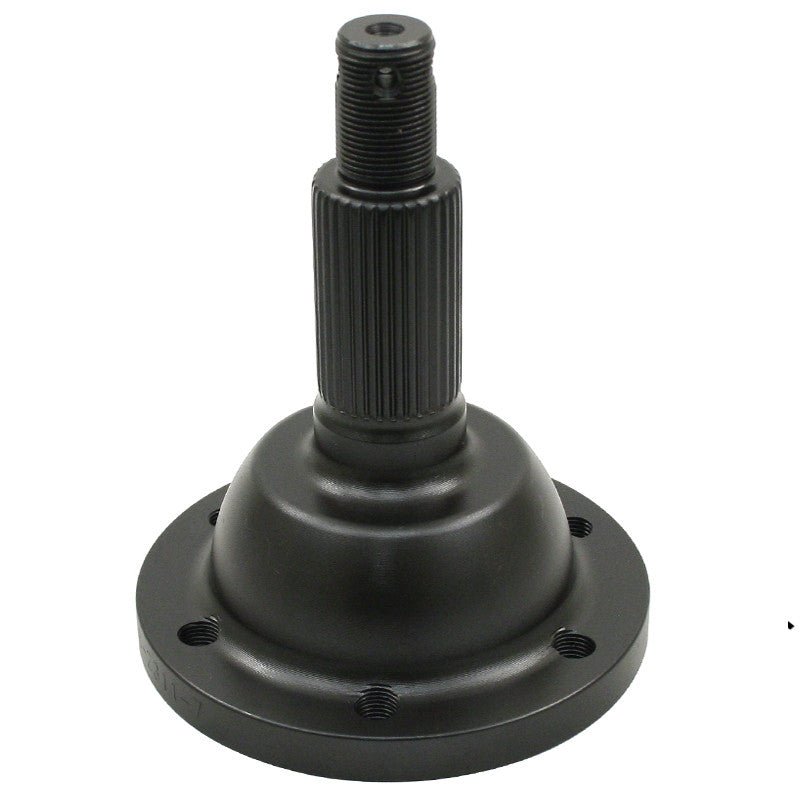

(2) Forged 1 Piece 4340 Chromoly 930 CV Stub Axles, 33 Spline Measuring At 1.490" Diameter.

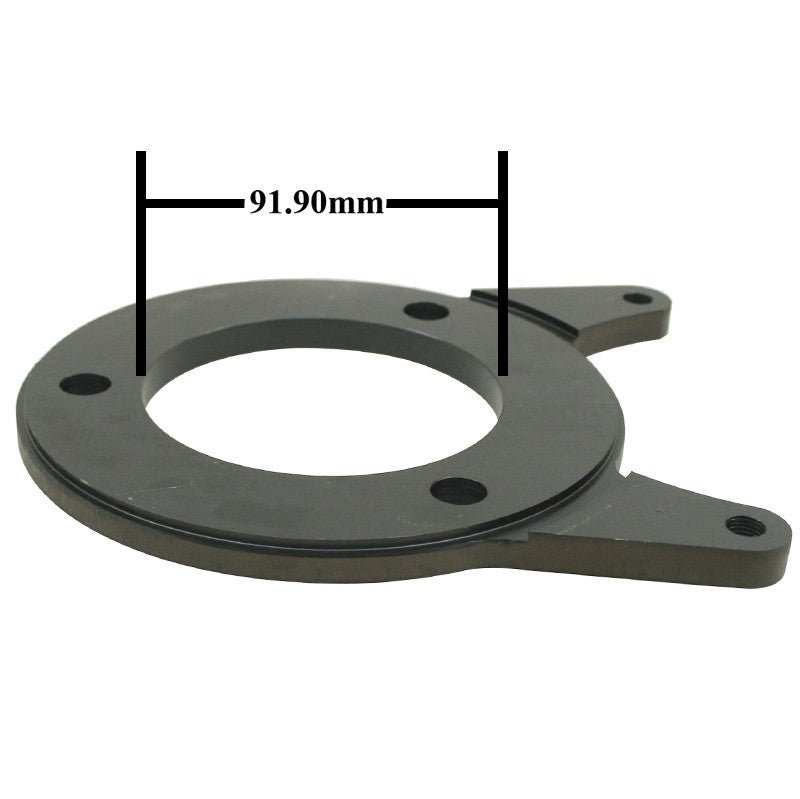

(2) Black Oxided Bearing/Caliper Mounting Plates, .390" Thick/3.60" Diameter Bearing Hole. Machined Groove To Properly Register Optional Chassis Mounting Tubes.

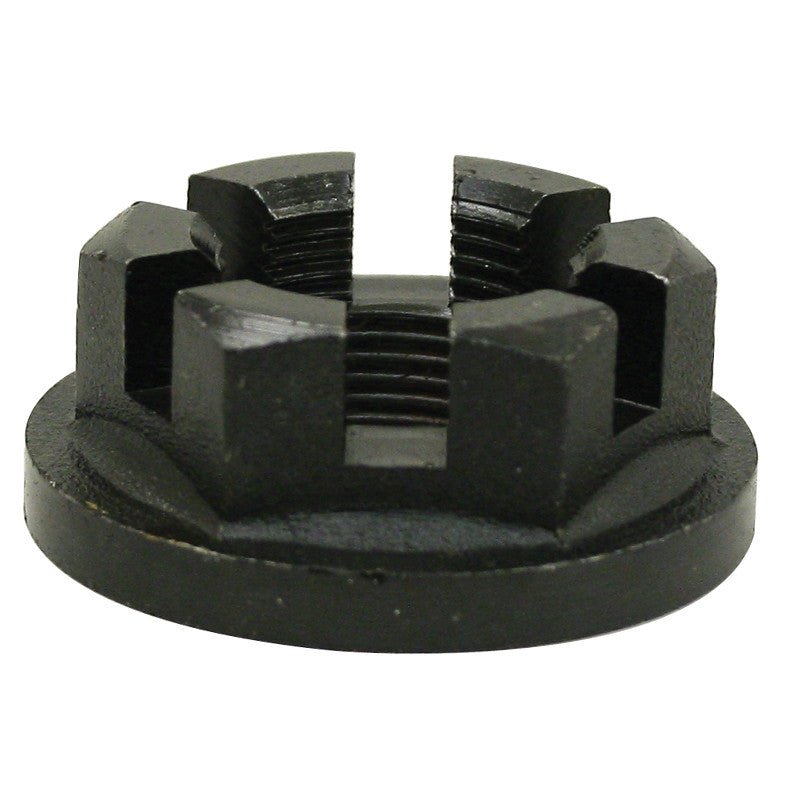

(2) Heavy Duty Axle Nuts, Thrust Washers & Cotter Pins.
(12) 3/8"-24, 12 Point Grade 8 C.V. Joint Bolts.
(4) 3/8"-24 X 2" Bolts (For Caliper To Bracket)
(4) 3/8" Flat Washers (For Caliper To Bracket)
(4) 3/8" Lock Washers (For Caliper To Bracket)
(10) Chrome 14mm Acorn Lug Nuts (For Wheel To Adapter Plate)
(10) Steel 14mm Open End Acorn Lug Nuts (For Adapter Plate To Bearing Hub)
(6) 12mm Allen Socket Bolts (Bearing Assembly To Mounting Bracket Plate)
(6) 12mm Lock Washers (Bearing Assembly To Mounting Bracket Plate)
This Kit Comes Complete Ready For Fab-in Installation And Are Sold As A Set For 1 Car.
