Empi 98-0454-B Universal Aluminum Vw Bug Engine Case 94mm Bore 86mm Crank

SKU: 98-0454-B

Free Shipping | Contiguous USA | No Purchase Minimums

WARNING: This product can expose you to certain chemicals, which are known to the State of California to cause cancer, birth defects or other reproductive harm.
For more information go to:

Empi 98-0454-B Heavy Duty Universal Bubble Top Vw Engine Case. New Air-cooled Volkswagen Engine Case With Numerous Design Features Added Right From The Start. Made From High Quality Aluminum Alloy And Are Fully CNC Machined Following Strict Quality Control Standards.

Piston Bore 94mm
Includes 8mm Case Savers

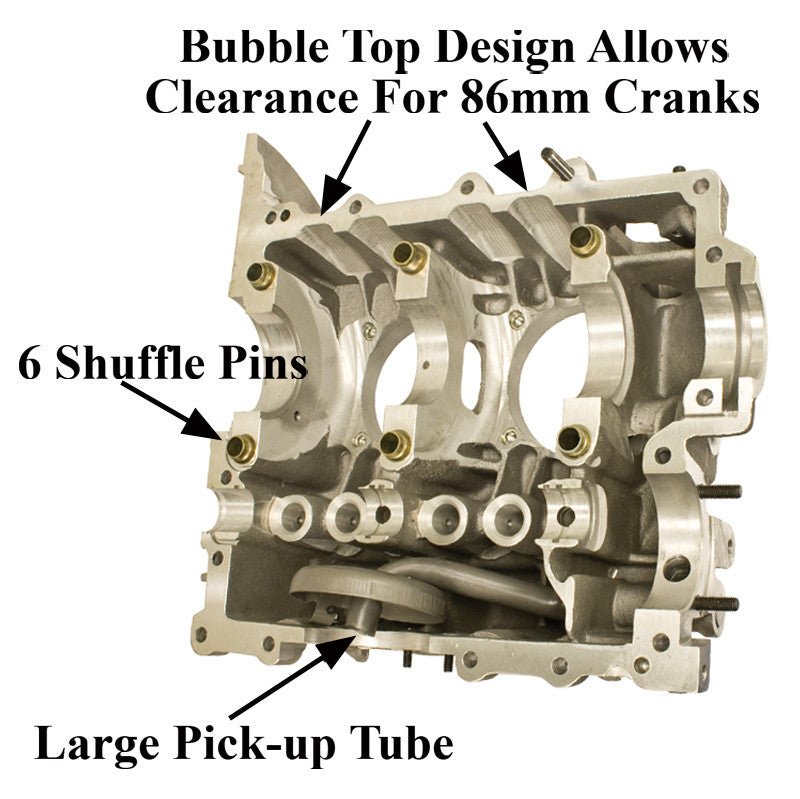

Bubble Top / Raised Roof With A Strong Radius Design Adding Strength And Allowing Additional Clearance For Up To 86mm Cranks
Shuffle Pins On All 6 Main Saddles For Snug Fit, Zero Gap And Longevity

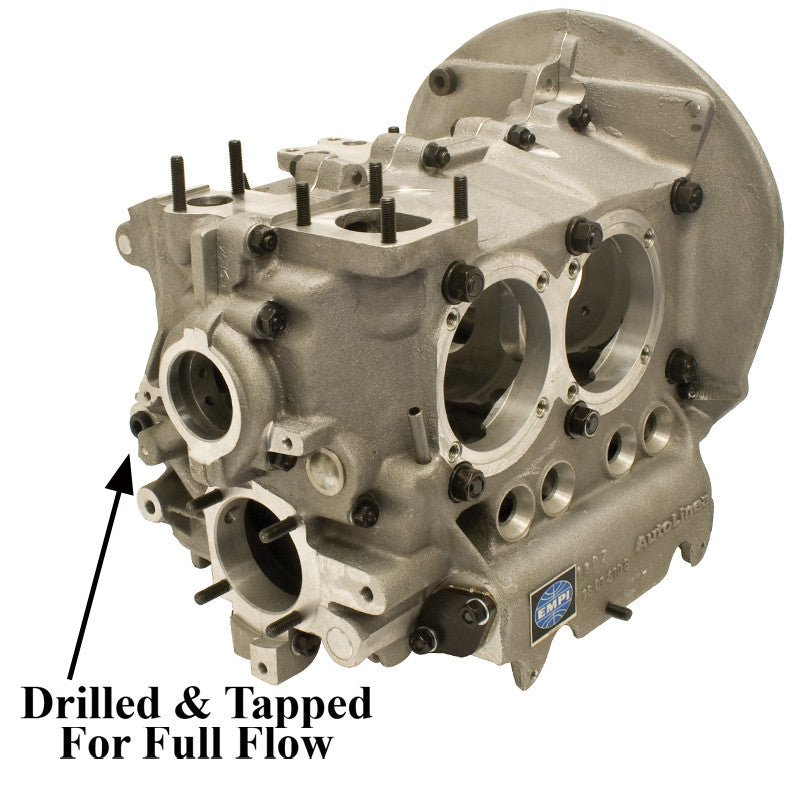

Drilled And Tapped For Full Flow With Plugs Supplied
Dual Relief Oil Gallies
Material Aluminum Alloy
Weigh Approximately 44lbs

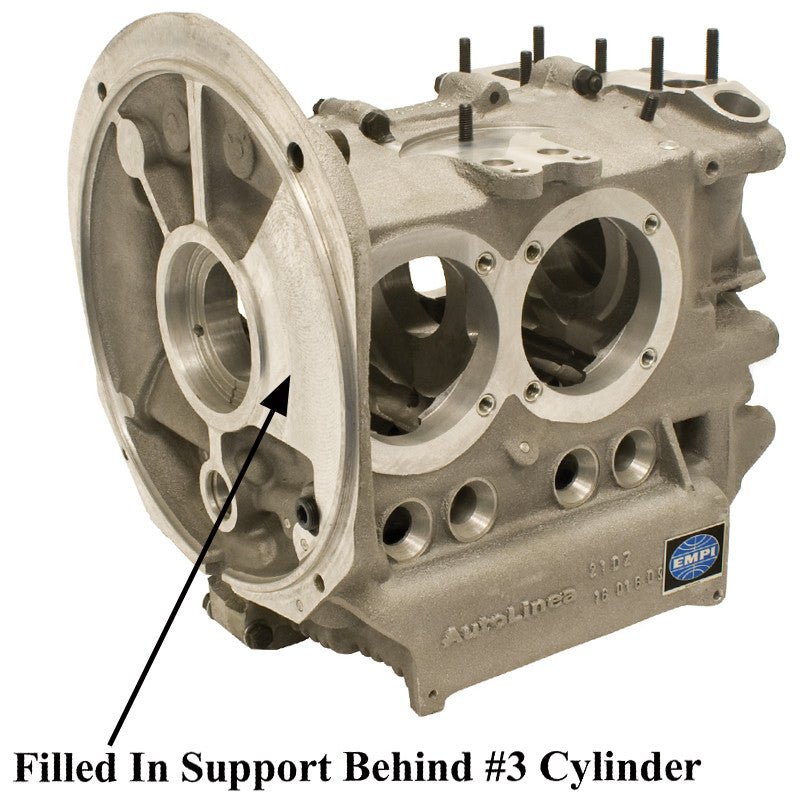

Filled In Support Behind #3 Cylinder

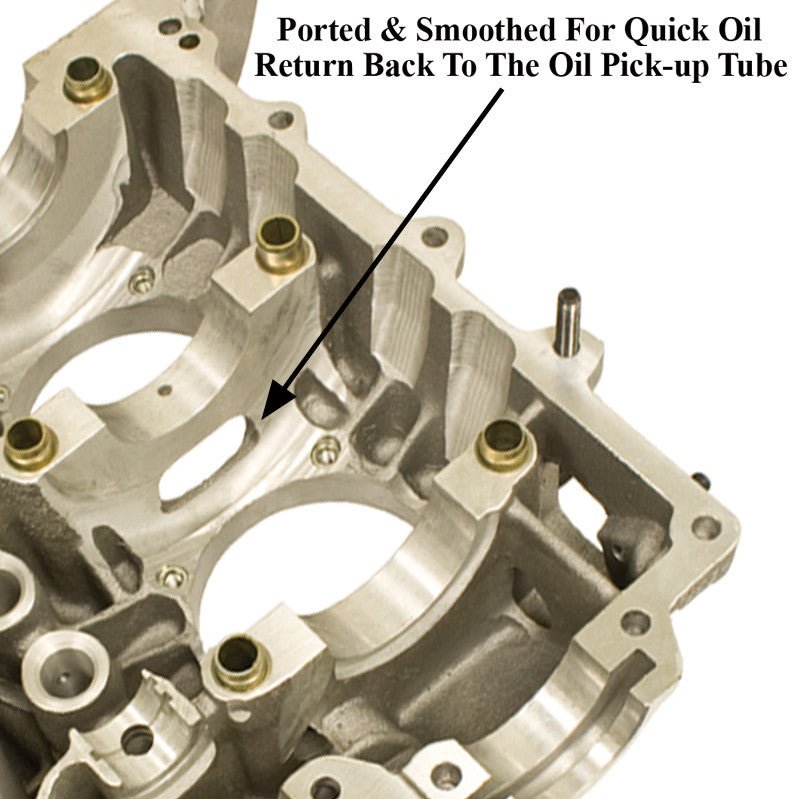

Ported And Smoothed For Better Flow
Large Oil Pick-Up Tube
Universal For Vw Type 1 Bug/Ghia , Vw Type 2 Bus, Vw Type 3 Squareback/Fastback/Notchback

Note: Trimming Required On Fan Shrouds Where Case Halves Meet

Type 1 Vw Bug / Beetle All Years
Type 1 Vw Karmann Ghia All Years
Type 2 Vw Bus, Transporter, Single Cab, Double Cab Up To 1970
Type 3 Vw Notchback, Fastback, Squareback All Years
