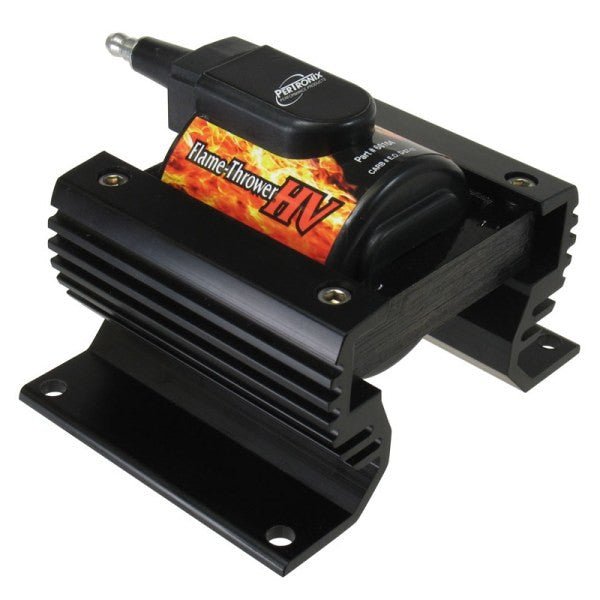

Pertronix 60130 Flame Thrower HV 60,000 Volt E-Core Coil 3.0 Ohm

Pertronix 60130 Flame Thrower HV 60,000 Volt E-Core Coil 3.0 Ohm

SKU: PER-60130

Free Shipping | Contiguous USA | No Purchase Minimums

WARNING: This product can expose you to certain chemicals, which are known to the State of California to cause cancer, birth defects or other reproductive harm.
For more information go to:

Pertronix 60130 Flame Thrower HV 60,000 Volt E-Core Coil 3.0 Ohm. Pertronix HV (High Voltage) E-Core Design Yields An Incredible 60,000 Volts And Operates With No Degradation Throughout Temperature Ranges That Surpass Military Specifications.

The Special Heat Sink Design Made From Aircraft 6063 T5 Aluminum Efficiently Transfers Heat Optimizing Energy Output For Street/Strip And Off Road Applications.
Flame-Thrower HV 3.0 Ohm Coils Are Also Compatible With Pertronix Second Strike.

HV Epoxy Filled E-Core Design
Black Finish
Turn Ratio 85:1
Primary Resistance 3.0 Ohms
Secondary Resistance 22.8k Ohms
Primary Inductance 9.0mH
Maximum Voltage 60,000
Length 4.6" X Width 4.65" X Height 3.15"

Highly Efficient E-Core Design
Vacuum Potted Coil Body For Longer Life And Increased Reliability
Precision Machined Male High Tension Terminal And Brass Primary Terminals
Legal In All 50 States And Canada. (C.A.R.B. E.O. #D-57-10)
Warranty: 90 Days
